ESP32-LCDKit

Cập nhập: 2021-09-11 10:08:08

Thương hiệu: Espressif

Loại hàng:

Chính hãng

- Hàng chưa qua sử dụng do chính hãng sản xuất cùng một mã lô.
- Hình thức: Mới, đóng gói đúng qui cách
- Chất lượng: Đúng như tài liệu mà hãng cung cấp
- Bảo hành: Đền bù nếu sản phẩm lỗi

Mã lưu trữ: 4G13BR

Tư vấn:

Mua/Đặt hàng - Giá sỉ Kỹ thuật

Số lượng	1 - 4	5+
Giá / Cái	560,000	540,000

Số lượng:

CHO VÀO GIỎ ĐẶT HÀNG Hướng dẫn mua hàng

Thông tin sản phẩm

Overview:

Espressif Systems ESP32-LCD-Kit HMI Development Board is based on the ESP32-DevKitC and is integrated with peripherals like SD-Card, DAC-Audio, and an external display. The board is mainly used for HMI-related development and evaluation. Development board reserved screen interface type include an SPI serial interface, 8-bit parallel interface, and 16-bit parallel interface.
You may find HMI-related examples running with ESP32-LCDKit in HMI Example.

Features:

ESP32-LCDKit is an HMI (Human Machine Interface) development board with the ESP32-DevKitC at its core
ESP32-LCDKit is integrated with an SD-Card, DAC-Audio, and can be connected to an external display
Mainly used for HMI-related development and evaluation
Development board reserved screen interface type: SPI serial interface, 8-bit parallel interface, 16-bit parallel interface

Parameters:

Manufacturer	Espressif
Product Category	Display Development Tools
Product	Development Kits
Interface Type	SPI
Tool Is For Evaluation Of	ESP32
Dimensions	73.4x25.1 mm
Datasheet	ESP32-LCDKit

Block Diagram:

PCB layout:

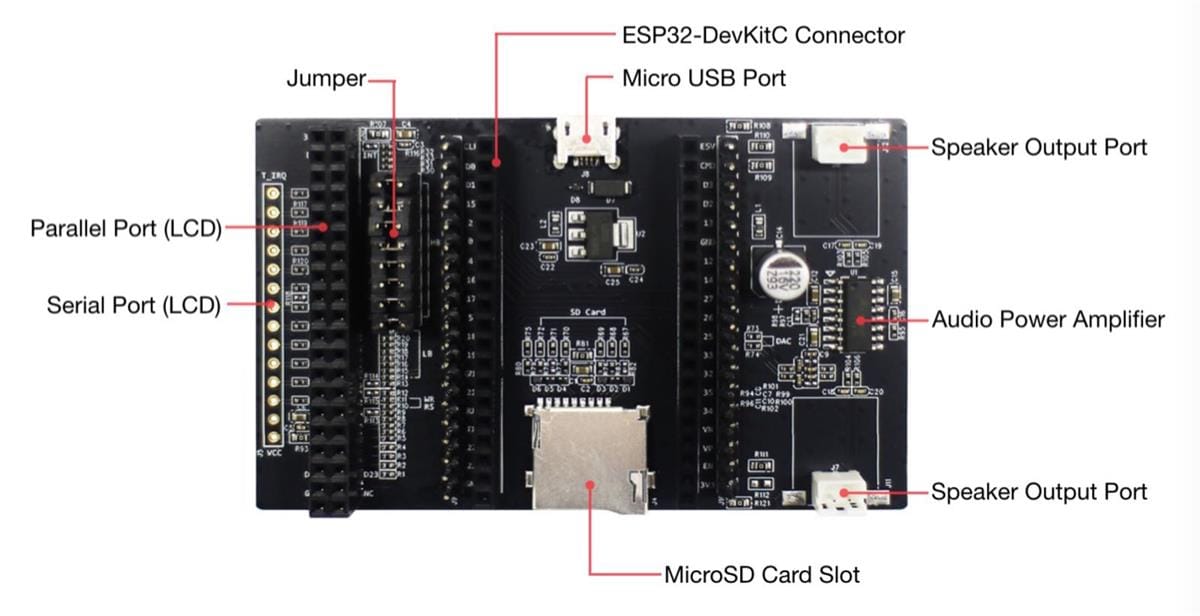

Board Layout:

References:

ESP32 Datasheet
For HMI development,please check ESP32-DevkitC
More about ESP32-DevkitC
